Description: GB 3000 spec sheet
Access level: public
Reference: SDOC-498608282-125
Download: PDF

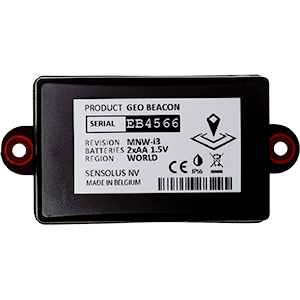

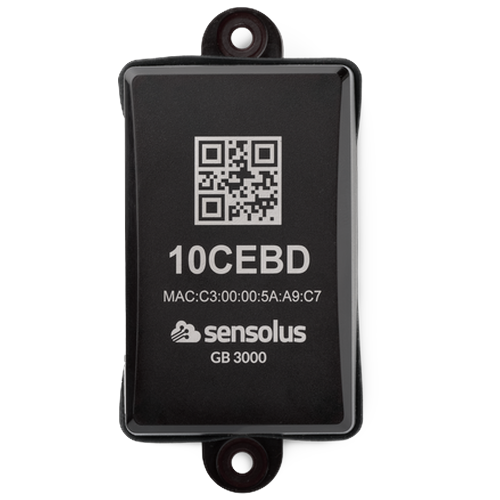

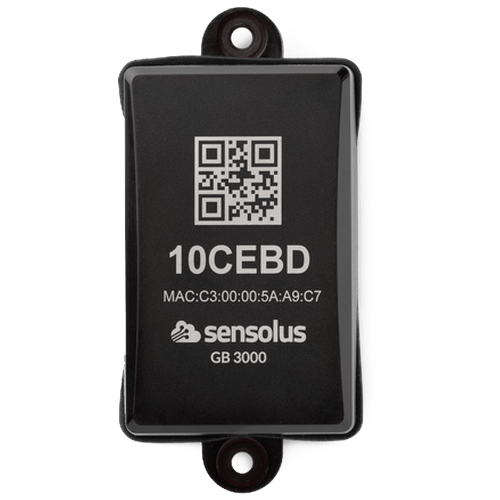

April 19, 2023 11:07 AM www.sensolus.com | info@sensolus.com Standalone geobeacon anchor GB 3000 Bluetooth Low Energy Beacon Max. 100 meters (110 yards) range 24.5 mm (1in) 45mm (1⁴⁹/₆₄ in) 95 mm (3⁴⁷/₆₄ in) Mechanics & design Connectivity IP65 Battery powered The battery-powered geobeacon for optimization of indoor tracking and zone accuracy of your assets. Compatibility Transmission power Compatible with all Sensolus trackers with BLE localization Variabel transmission power up to 100 meter. Mounting · Double adhesive mounting tape · 4 closing screws · 2 mounting screws · 2 plastic dowels Size Weight 95x 45 x 24.5 mm (3⁴⁷/₆₄ x 1⁴⁹/₆₄ x 1 in) 70 gram (2.5 oz) with 2 batteries Black Casing On board PCB antenna Antenna Batteries · 5 years battery life depending on operating mode · 2 user replaceable AA lithium batteries
Description: Mounting instructions for installation of Sensolus devices
Access level: public
Reference: SDOC-498608282-1048
Download: PDF
Product mounting advice How to install Sensolus productsLast update: Thursday, June 12, 2025 2Sensolus product mounting advice This document is for all installers of our products and gives an overview and advice for the mounting options of standard Sensolus products.
Choosing the right mounting method is important to make sure the product doesn’t get damaged or falls of.
MOUNTING OPTIONS PER PRODUCT … 3 RIVETS … 4 RIVET DIMENSIONS … 4 THE WAY TO FIND YOUR RIVETS … 5 RIVET MATERIAL … 6 BOLTS AND SCREWS … 7 DOUBLE SIDED TAPE … 8 TIE WRAPS … 9 GLUE … 10 MAGNET MOUNTING KIT … 11 SENSOR AND TAG HOLDERS … 12 MOUNTING ADVICE FOR TRACKERS ON SPECIFIC MATERIALS … 13 VIBRATING PLASTICS IN OUTDOOR CONDITIONS … 13 PLASTIC BOXES … 13 METAL IN OUTDOOR CONDITIONS … 13 Trackers … 13 Tags … 13 FILL LEVEL SENSOR INSTALLATION INSTRUCTIONS … 14 MOUNTING OVERVIEW … 14 TOOLS AND MATERIALS NEEDED … 14 INSTALLATION STEPS … 14Last update: Thursday, June 12, 2025 3Mounting options per productProduct Rivets Bolts/screws Glue Double sided tape Tie wraps Holder Magnet mounting kit Battery powered trackers• TRACK 1000 ✓ ✓ ✓ ✓ ✓✓ • TRACK 1020 ✓ ✓✓• TRACK 1030 ✓ ✓✓• TRACK 1100 ✓ ✓ ✓ ✓ ✓✓ • TRACK 1140 ✓ ✓ ✓ ✓ ✓✓ • TRACK 1110 ✓ ✓ ✓ ✓ ✓• TRACK 1130 ✓ ✓ ✓ ✓ ✓• TRACK 1101 ✓ ✓ ✓ ✓ ✓✓ • TRACK 1141 ✓ ✓ ✓ ✓ ✓✓Vehicle trackers• TRACK 1203✓ ✓ ✓• TRACK 1210 ✓ ✓ ✓ ✓ ✓✓Tag trackers• TAG 2001 ✓ ✓ ✓ ✓ ✓• TAG 2002✓ ✓✓• TAG 2002 ✓ ✓ ✓ ✓ ✓• TAG 2007✓ ✓Sensors• SENSE T 4000✓ ✓✓• SENSE HT 4050✓ ✓✓• SENSE M 4201✓ ✓✓• SENSE T 4004✓ ✓✓• SENSE FL 4300✓ ✓ ✓ ✓ ✓Infrastructure• GB 3000 ✓ ✓ ✓ ✓• ZA 3500✓ ✓ ✓• ZA 3505 ✓ ✓ ✓ ✓ ✓✓ • ZA 3510✓✓ ✓✓Last update: Thursday, June 12, 2025 4 Rivets We recommend rivets because they are easy in installation and strong. Use the appropriate size and length of the rivets. So how to choose the correct dimension of your rivets?
Rivet dimensionsFigure 1: Rivet dimensions D2: 12-14 mm is a good head diameter for 1100/1101 (dome or flat head) D1: 5-6 mm is a good diameter for 1100/1101 L: Rivet body length (decision depends on S) S: Grip range Rivet manufacturers give you the dimensions in D1 x L (e.g. 6 x 20). The rivet manufacturer gives the grip range for the different rivet dimensions that he provides,
e.g. GESIPA Blind rivets alu/steel dome head 6 x 20 has a Grip range of 13,00 - 15,00 mmDrillhole diameter: D1 + 0,1mm d: Mandrel diameter (needs to fit in your tool, a lot of rivet manufacturer/dealers don‘t have/show this information)
Tracker Thickes 8mm Asset material thicknessLast update: Thursday, June 12, 2025 5 For example: The length of the rivet should be equal to the thickness of both objects you are fastening the tracker to (mounting holes height + thickness material), plus 1.5 times the diameter of the rivet’s stem. Do not use rivets with a smaller diameter, this will not firmly attach the tracker. Do not use rivets with bigger diameter as you might damage the casing. The way to find your rivets • Choose the correct material of the rivet body • Determine the correct grip range (S) by adding tracker material thickness 8mm + material thickness of the asset • Choose your preferred rivet body diameter (5 or 6 mm) • Choose your preferred rivet head diameter (12 or 14 mm) • Make sure the mandrel diameter fits into your rivet tool. If you don’t know the maximum mandrel diameter that your tool can handle, you can determine that by sticking drills with different diameters into your rivet tool. There are often values on the rivet inserts of the riveting tool. These usually refer to rivet body diameters. However, since there are hundreds of different rivet variants on the market and almost every manufacturer does what they want, you should ignore this information and follow the recommendations in this document. Measuring is the best way. Other than others, GESIPA gives you the diameter of the mandrels). • Make sure you have enough drills with correct diameter, it can happen that you will break one or the other drill (rivet body diameter + 0,1mm (e.g. 6,1mm).
GESIPA – The experts in blind riveting: Standard blind rivetsTracker mount hole Diameters and height overviewProduct Distance between mounting holes Rivet diameter Height of mounting holes TRACK 1110 90 mm 5 mm 5 mm TRACK 1130 125 mm 5 mm 5mm TRACK 1100/1101/1140/1141 115 mm 6 mm 8 mm SENSE FL 4300 111,5 mm 4 mm 5 mm TAG 2001 49 mm 4 mm 3 mm TAG 2006 60 mm 4 mm 7 mm GB 3000 84 mm 4 mm
2 mm ZA 3505 115 mm 5 mm 8 mmℹ GESIPA is a good manufacturer of high quality rivets and has a wizard on their website toLast update: Thursday, June 12, 2025 6Rivet material Stainless steel Use Stainless steel rivets when mounting trackers on outdoor assets.Steel Steel rivets can be used for indoor purposes when mounting on steel assets.Aluminium Use aluminum rivets for mountin the tracker on materials such as aluminum, fabrics, plastics, leather,Figure 2 Moun!ng with rivets⚠ Using aluminium rivets on steel can cause the rivet to corrode.
⚠ Do not use stainless steel rivets on aluminium assets. They cause corrosion on the asset . ⚠ Do not use steel rivets on aluminium assets. They can cause corrosion on the asset.Last update: Thursday, June 12, 2025 7 Bolts and screws Bolts and screws are harder to install than rivets because you need access to both the bolt and the nut. This is not always possible, for example when installing tracker on sidewall of a large container. The advantage of bolts and screws is that it is easier to remove them, rivets/glue/tape is harder.
Using glue in combination with bolts and screws is common practice but requires more work.
  1. Use the appropriate size of screws, see table below. If you don't use the correct sizes you risk damaging the tracker or having an unsafe installa!on.
  2. It is recommended to use thread locking glue on the bolts. Thread locking glue is used to prevent bolts coming lose due to vibra!ons. Pay addi!onal a”en!on to this if you are installing the tracker on a vibra!ng asset. We recommend Loc!te Thread Locker Blue 242.
  3. Protect the tracker casing appropriately: protect the casing with a washer and use a spring washer to mi!gate the effects of vibra!on and temperature varia!ons.
  4. Do not apply more torque than found in the below table. You risk to damage the casing if you exceed it.
Figure 3 Moun!ng with bots and screws Product Distance between holes Bolt type Height of mounting holes Max applied torque TRACK 1110 90 mm M5 5 mm 2.5 Nm TRACK 1130 125 mm M5 5 mm 2.5 Nm TRACK 1100/1101/1140/1141 115 mm M6 8 mm 3.5 Nm SENSE FL 4300 111,5 mm M4 5 mm 3 Nm TAG 2001 49 mm M4 3 mm 2.5 Nm TAG 2006 60 mm M4 7 mmGB 3000 84 mm Comes with the productZA 3505/3510 115 mm M6 8 mm 3.5 Nm ZA 3500 86 mm M4 / /Last update: Thursday, June 12, 2025 8 Double sided tape Double sided tape is easy to install and does not damage the asset unlike bolts/rivets. However you need to be sure both tracker and the surface of the asset are clean. Double sided tape is strong but not so resistant to force applied sideways. Make sure the double sided tap only covers the back of the product. Avoid using double sided tape to attach a tracker or tag on an asset that is regularly exposed to vibrations or shocks. Most products can be mounted with double sided tape. Recommended tapes:
• 3M Acrylic Plus Tape Series PT1000 : h”ps://www.3m.com/3M/en_US/p/d/b40065692/ • 3M™ VHB™ Tape GPH-110GF : h”ps://www.3mbelgie.be/3M/nl_BE/p/d/b40065748 Follow these steps when applying double sided tape:
  1. Make sure the surface of the asset and device are clean and dry.
  2. Sand the surface of the asset.
  3. Sand the backside of the device.
  4. Apply the double sided tape.
  5. Press the device firm onto the asset for a minute.
  6. Let it dry for at least 1 hours before moving the asset.
Figure 4 Moun!ng with double sided tape⚠ TRACK 1020 and TRACK 1030 cannot be mounted with double sided tape. The anti-tamper button needs to be pushed continuously to ensure proper working of the tracker. ℹ SENSE FL 4300 and GB 3000 already have the double sided tape from the factory. ⚠ TAG 2007 can be mounted with double sided tape but be carefull not to tape the battery sloth to the asset so you can still open it to replace the batteriesLast update: Thursday, June 12, 2025 9 Tie wraps We recommend metal tie wraps with a width of 5-6 mm.
In some cases, plastic tie wraps are also useful: if you need to remove the trackers often and fast for example. Take into account that tie wraps can be easily cut to take away the trackerProduct Tie wrap width TRACK 1110 6 mm TRACK 1100/1101/1140/1141 5 mm SENSE FL 4300 / TAG 2001 4 mm TAG 2006 4 mm ZA 3505 6 mmFigure 5 Moun!ng with !e wraps⚠ TRACK 1020 and TRACK 1030 cannot be mounted with tie wraps. The anti-tamper button needs to be pushed continuously to ensure proper working of the tracker.Last update: Thursday, June 12, 2025 10 Glue Glue can be very strong but also once it is glued, it is very hard to remove the device. You will probably damage the device and break warranty when removing a glued device.
Avoid gluing a tracker or tag on an asset that is regularly exposed to vibrations or shocks. Our devices are best paired with these recommended glue types.Product Glue type TRACK 1100/1110/1140/1101/1141 MS Polymeer SENSE FL 4300 MS Polymeer SENSE T 4000/ SENSE T 4004 / SENSE M 4201
Polyurethane glue TAG 2001 MS Polymeer TAG 2002 Polyurethane glue TAG 2006 MS Polymeer TAG 2007 MS Polymeer Apply these steps when using glue
  1. Make sure the surface of the asset and device are clean and dry.
  2. Sand the surface of the asset.
  3. Sand the backside of the device.
  4. Apply the glue to the sanded surface.
  5. Press the device firm onto the asset for a minute.
  6. Let it dry for at least 6 hours before moving the asset.
Figure 6 Moun!ng with glue⚠ TRACK 1020 and TRACK 1030 cannot be mounted with glue. The anti-tamper button needs to be pushed continuously to ensure proper working of the tracker.Last update: Thursday, June 12, 2025 11 Magnet mounting kit Magnet mounting is the perfect solution for magnetic surfaces when you require the flexibility to easily attach and detach the tracker. However, it's important to note that this method is best suited for controlled environments. In uncontrolled areas, there is a risk of malicious individuals removing the tracker, as well as potential damage to the surface of the asset. We offer a standard magnet mounting kit for these products.Product Description Sensolus reference TRACK 1000/1100/1101/1140/1210/1141 Magnet mounting kit for 1 TRACK 1100/1101/1140 tracker MNT MAG 8110 SENSE FL 4300
Magnet mounting kit for SENSE FL 4300 MNT MAG 8111 ZA 3510 Magnet mounting kit for 1 TRACK 1100/1101/1140 tracker MNT MAG 8110Figure 7 Moun!ng with magnet kit⚠ All other products cannot be mounted with a magnet mounting kit.Last update: Thursday, June 12, 2025 12 Sensor and tag holders Sensolus offers a holder and sticker kit to mount the sensors.
Use the holder if you can drill holes in the asset. The holder with screws is the safest mounting method for the listed sensors. Glue and double sided tape can react to heavy heat or cold temperatures.
You can mount the sensor using only the sticker (see mount with double sided tape). Or you can use the holder. You can mount the holder with double sided tape (see mount with double sided tape) or screws.Product Description Sensolus reference • SENSE T 4000 • SENSE T 4004 • SENSE HT 4050 • SENSE M 4201 • TAG 2002 ELA sensor mounting holder MNT ELA 8140Figure 8 Moun!ng with holdersLast update: Thursday, June 12, 2025 13 Mounting advice for trackers on specific materials Vibrating plastics in outdoor conditions Plastic may deteriorate over time from exposure to weather and vibrations. By using a combination of glue and bolts or rivets, you can securely fasten the device to the asset. Plastic boxes
Plastic boxes are handled by people, the stack them, let them drop sometimes, load them onto carriers and so on. Attaching trackers or Bluetooth tag trackers seems easy by gluing them. Check the material of the plastic box and look for a glue or silicone that is suited for the material. When glued, wait for at least 6 hours to handle the plastic box.
Metal in outdoor conditions Trackers We recommend to use mechanical mounting on metal in outdoor conditions. Rivets or blots and screws are a good solution. Please check the mounting advice for rivets and bolts.
Tags Glueing Bluetooth tag trackers onto metal assets works fine. Use of correct glue and respect drying times is essential. You can find the correct type of glue and drying times in the glue chapter of this document.Last update: Thursday, June 12, 2025 14 Fill Level Sensor Installation Instructions Mounting Overview The fill level sensor can be securely mounted using double-sided tape or industrial-grade polymer glue. Proper adhesion and sealing are critical to ensure accurate readings and long- term durability, especially in environments exposed to moisture. Tools and Materials Needed • Clean cloth or isopropyl alcohol wipes • Industrial-grade polymer glue (if chosen) • High-quality waterproof double-sided tape (if chosen) • Sensor unit • Personal protective equipment (if using glue) Installation Steps
  1. Surface Preparation o Clean the mounting surface thoroughly to remove any dust, oil, or moisture. o Ensure the surface is smooth and dry before proceeding.
  2. Apply Adhesive (Choose One Method) Option A: Double-Sided Tape o Cut the tape to match the size of the sensor’s mounting surface. o Important: Apply the tape so it covers 100% of the mounting area. o Press the tape firmly onto the back of the sensor. Option B: Industrial-Grade Polymer Glue o Apply the glue evenly across the entire mounting surface of the sensor. o Important: Avoid gaps or air pockets—coverage must be complete for a secure bond.
  3. Mount the Sensor o Press the sensor firmly against the mounting surface. o Hold or support the sensor for the adhesive’s recommended curing or bonding time.
Last update: Thursday, June 12, 2025 15 4. Seal the Lens Area (If Applicable) o If mounting on the lens side, ensure that no water can enter between the lens and the surface. o Use additional sealing tape or waterproof barrier if necessary. o Recheck to confirm the lens is tightly sealed and protected from moisture ingress.
  1. Final Check o Inspect the bond to ensure the sensor is flat and secure. o Allow glue to fully cure before exposing the sensor to operational conditions (refer to manufacturer’s glue curing time).
Tips for Best Results • Apply the sensor in dry conditions to avoid condensation during installation. • Avoid repositioning the sensor once adhered. • For outdoor or high-moisture applications, waterproof double-sided tape is preferred unless glue offers a more permanent solution.
Description: 3D-file for GB 3000 in STP format
Access level: end-user
Reference: SDOC-498608282-695
Download: STP
Description: Installations- und Aktivierungsanleitung GB 3000 (DE)
Access level: public
Reference: SDOC-498608282-85
Download: PDF
www.sensolus.com | info@sensolus.com March 11, 2024 10:30 AM Montage- und Aktivierungshandbuch für GB 3000 Montage und Aktivierung Notieren Sie die Seriennummer des Geobeacons, da Sie diese später noch benötigen werden. Bestimmen Sie den Bereich, in dem Ihre Assets mit Hilfe dieses Geobeacons geolokalisiert werden sollen, und bringen Sie den Geobeacon in der Mitte dieses Bereichs an. Nehmen Sie alle Teile aus der Tüte. Öffnen Sie den Geobeacon. Legen Sie die zusätzliche Batterie in den Geobeacon ein. Verschließen Sie den Geobeacon mit den kleinen schwarzen Schrauben. Schritt 1: Einsetzen der Batterien Schritt 2: Notieren der Seriennummer Schritt 3: Auswahl eines Standorts Montieren Sie den Geobeacon mit Schrauben. Montieren Sie den Geobeacon mit doppelseitigem Klebeband. Schritt 4: Montage des Geobeacon Schritt 5: Funktionsprüfung des Geobeacon Verwenden Sie die Beaconset+-App, um zu überprüfen, ob die BLE-Anzeigen erkennbar sind (die Geobeacon-Seriennummer wird in der Liste angezeigt). Sie können sich bewegen, um den abgedeckten Bereich zu überprüfen.www.sensolus.com | info@sensolus.com March 11, 2024 10:30 AM BLE-Signale der Geobeacons Sensolus Geobeacons verwenden BLE -Signale. Wasser- und Metallflächen reflektieren die Bluetooth -Signale. Testen Sie die Geräte immer unter realen Umständen, um die Geobeacons optimal zu installieren. Höhe Montieren Sie den Geobeacon so hoch wie möglich, mindestens 1,8 Meter über dem Boden. Reichweite der Geobeacons Je nach konfigurierter Signalstärke deckt der Geobeacon einen Bereich mit einem Radius zwischen 2 und 100 Metern ab. Für die Geolokalisierung in Innenräumen beträgt die Standardreichweite eines Geobeacon ca. 30 Meter. Hinweise zur Montage Position Denken Sie daran, dass ein Geobeacon ein festes Gerät ist, das immer am selben Standort bleiben sollte. Falsche Ausrichtung Geobeacons werden senkrecht oder waagerecht und nur mit der Rückseite zur Montagefläche hin montiert. Sensolus Geobeacons können senkrecht oder waagerecht mit der Rückseite zur Montagefläche hin montiert werden. Alle anderen Montagearten werden nicht empfohlen.www.sensolus.com | info@sensolus.com March 11, 2024 10:30 AM Aktivierung in der Plattform Sobald Ihre Geobeacons ordnungsgemäß aktiviert und montiert sind, müssen Sie sie in der Sensolus- Plattform registrieren und konfigurieren. Schritt 1
  1. Melden Sie sich in der Sensolus-Plattform an und gehen Sie zum Administrator-Bereich.
  2. Wählen Sie „Infrastructure“ (Infrastruktur). Wenn Ihre Geobeacons bereits Ihrem Konto zugewiesen wurden, sehen Sie deren Seriennummer in der Liste.
  3. Gehen Sie zu dem Geobeacon, für den Sie den Standort festlegen möchten. Schritt 2 Als nächstes müssen Sie im System genau konfigurieren, wo Sie jeden Ihrer Geobeacons platzieren werden.
  4. Bearbeiten Sie die Einstellungen, um ihm einen sinnvollen Namen zu geben.
  5. Bearbeiten Sie den Standort • Geben Sie die (ungefähre) Adresse in die Suchleiste auf der Karte ein und zoomen Sie dann hinein, bis Sie den Ort erkennen können, an dem Sie das Geobeacon physisch montiert haben. • Klicken Sie auf Geobeacon-Standort hinzufügen und eine Markierung wird angezeigt. Sie können diese Markierung verschieben, bis sie genau den Ort anzeigt, an dem Sie das Geobeacon installiert haben. • Klicken Sie zum Abschluss auf Speichern. Schließlich sollten Sie sicherstellen, dass Ihre Tracker so konfiguriert sind, dass sie nach Geobeacons suchen. Sie können dies auf der Tracker- Konfigurationsseite tun, oder der Sensolus-Support kann Ihnen dabei helfen. Sobald Sie einen Geobeacon aktiviert haben, MUSS er mit dem korrekten Standort auf der Sensolus-Plattform verknüpft werden. Andernfalls kann es passieren, dass die Tracker ihren Standort nicht mehr bestimmen können.
Description: Installation and activation manual of the GB 3000 (EN)
Access level: public
Reference: SDOC-498608282-86
Download: PDF
Installation and activation manual for GB 3000 Installation and activation. Step 1 Place the batteries Take all parts out of the plastic bag. Open the geobeacon. Add the extra battery to the geobeacon. Close the geobeacon with the small black screws. Step 2 Get the serial Make sure to write down the serial number of the Geobeacon as you will need it later. Step 3 Choose a location Identify the area in which your assets need to be geolocated using this Geobeacon and place the Geobeacon in the middle of that area. Install the geo beacon with screws Install the geo beacon with double sided tape Step 4 Install the geobeacon Step 5 Verify if the geobeacon works Use the Beaconset+ app to verify that the BLE advertisements are discoverable (you will see the Geobeacon serial number in the list). You can move around to verify the covered area.BLE signals of the geobeacons Sensolus Geobeacons use BLE signals. Water and metal surfaces reflect the Bluetooth signals. Always test the devices in real life circumstances for optimal installation of the geobeacons. Range of the geobeacons Depending on the configured signal strength, the Geobeacon will cover an area between 2 meter and 100 meter radius. For indoor geolocation, the standard range of a Geobeacon is around 30 meters. Height Install the geobeacon as high as possible, minimum 1.8 meter above the ground. Installation advice Position Remember that a Geobeacon is a fixed device that should always remain at the same location. Wrong orientation Geobeacons are mounted verticallly or horizontaly and only with the back facing the mounting surface Sensolus geobeacons can be installed vertically and horizontally with the back facing the mounting surface. All other installations are not recommended.Activation in the platform Once your Geobeacons are properly activated and installed, you need to register and configure them in the Sensolus platform. Step 1
  1. Sign in to the Sensolus platform and go to the admin section.
  2. Select infrastructure. If your Geobeacons have been pre-assigned to your account, you will see their serial number in the list.
  3. Go to the geobeacon you want to set the location for. Step 2 Next you will need to configure in the system exactly where you will place each of your geobeacons.
  4. Edit the settings to give it a usefull name.
  5. Edit the location • Type in the (approximate) address in the search bar in the map and then zoom in until you can recognize the place where you physically mounted the Geobeacon. • Click Add geobeacon location and a marker will show, you can move this marker until it shows the exact place where you installed the Geobeacon. • Hit Save to finish. Finally, you should make sure that your trackers are configured to scan for Geobeacons. You can do that in the Tracker configuration page, or Sensolus support can help you with that. Once you have activated a Geobeacon, it MUST be associated with a correct location in the Sensolus platform. Failing to do so may result in trackers not being able to determine their location anymore.
