Description:
Access level: public
Reference: SDOC-498608282-1410
Download: PDF

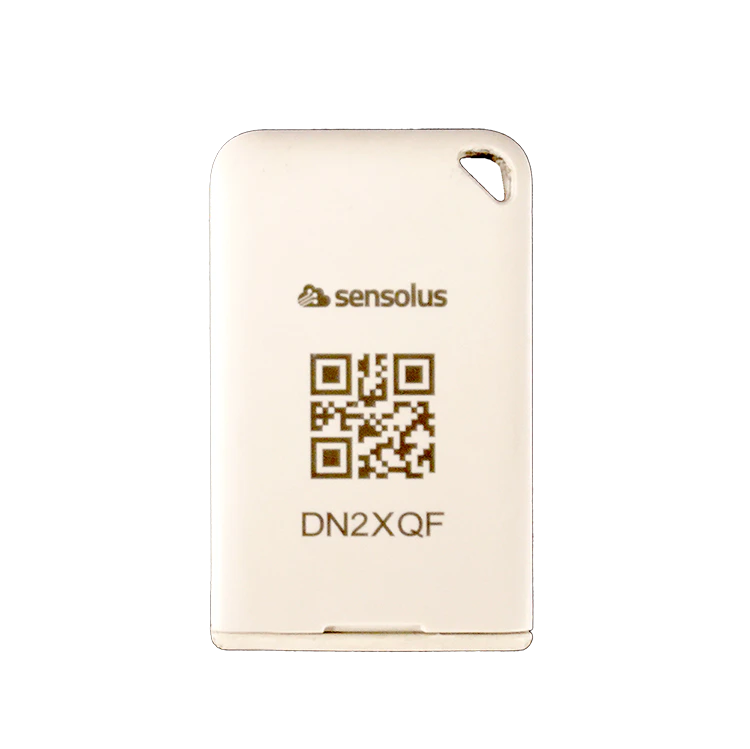

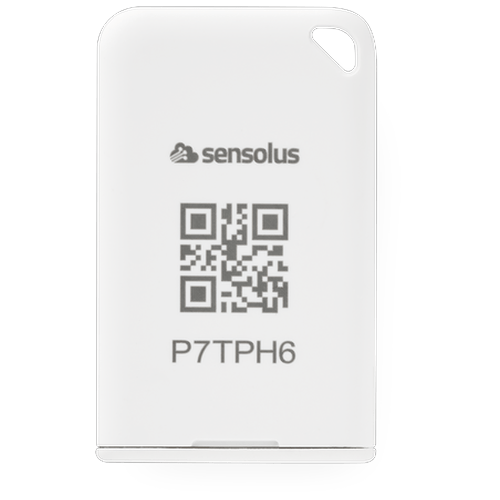

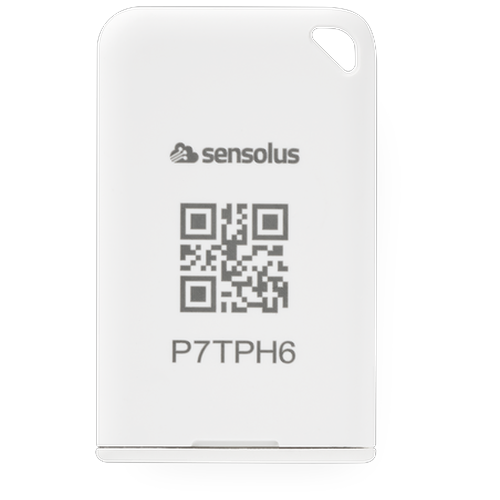

TAG 2007 Compact BLE Location Tag Tracker www.sensolus.com | info@sensolus.com Compact, tile-shaped location tag tracker particularly useful for applications where space is limited. Using Bluetooth Low Energy (BLE) technology, it enables the localization of assets when in range of Sensolus devices with smart BLE gateway capabilities. BLE iBeacon advertising Up to 4 years battery life IP67 rated 26 × 42 × 6mm 15g Connectivity Technology Bluetooth Low Energy (BLE) iBeacon Transmission Range 50 meters or more at +4dBm emission power. Actual detection range is strongly influenced by physical environment. Mechanics & Design Dimensions 26 × 42 × 6mm Weight 15 grams Color White Casing Material Resin based polymer Water & Dust Resistance IP67 Operating Temperature -20°C to +60°C Power Battery Type User replaceable CR2032 battery Battery Life Up to 4 years depending on transmission power. Activation Method Pull activation strip to activate.TAG 2007 Compact BLE Location Tag Tracker www.sensolus.com | info@sensolus.com Certifications Europe CE USA FCC Canada IC Environmental RoHS compliant
Description:
Access level: public
Reference: SDOC-498608282-1390
Download: PDF
Activation and installation manual for TAG 2007 www.sensolus.com | info@sensolus.com June 25, 2025 Activation of the TAG 2007 The TAG 2007 is not activated when you receive it. The device comes with a mylar film to prevent battery drainage during storage. 1 The TAG 2007 is not activated when you receive them. They come with a mylar film to protect battery drainage. → 2 To power on the TAG 2007, take the mylar film out. → 3 A red LED will keep blinking for 2 seconds. The TAG 2007 is now powered. Mounting the TAG 2007 The TAG 2007 can be attached using double-sided tape, industrial-grade glue, or tie wraps. See general mounting advice document how to mount the tag. Do not cover the red area with double-sided tape or glue. The green area is suited for double-sided tape or glue. The battery slot is not covered, so replacement is still possible.Activation and installation manual for TAG 2007 www.sensolus.com | info@sensolus.com June 25, 2025 Replacing batteries When the battery needs to be replaced, follow these steps: 1 Open the TAG 2007 battery slot. → 2 Replace the battery (CR2032). → 3 A red LED will keep blinking for 2 seconds. The TAG 2007 is now powered. Safety advice – device subjected to strong mechanical impact Risk of delayed battery failure and chemical hazard If a device has been hit, crushed, or struck by a heavy object (for example a forklift, container, pallet, or falling load), the internal components and battery may be damaged even if no external damage is visible. Such damage can result in delayed overheating, leakage, or failure. If a device has been subjected to a strong mechanical impact, the following mandatory safety actions must be taken: # Action Details 1 Do not touch the device Do not move, lift, open, shake, or inspect the device immediately after the impact. Internal damage may cause delayed reactions. 2 Keep a minimum safety distance Maintain a clear distance of at least 5 meters from the device. Keep all personnel away during this period. 3 Wait at least 10 minutes The device must remain untouched and undisturbed for a minimum of 10 minutes following the impact. This waiting time allows potential delayed thermal or chemical reactions to become evident. 4 Observe from a safe distance Watch for warning signs: smoke, vapor, or unusual odor; heat generation; fluid leakage; hissing, cracking, or popping noises. 5 After the waiting period If any abnormal condition is observed, isolate the area immediately and notify responsible safety or supervisory personnel. The device must be quarantined and handled according to battery safety and disposal procedures. The device must not be used. A device may appear undamaged and still be unsafe. Normal operation after impact does NOT mean the device is safe. Failure to follow this safety advice may result in serious injury, fire, or chemical exposure.
Description: 3D-file for TAG 1 in STEP format
Access level: end-user
Reference: SDOC-498608282-1222
Download: STEP
