Description:
Access level: public
Reference: SDOC-498608282-1411
Download: PDF

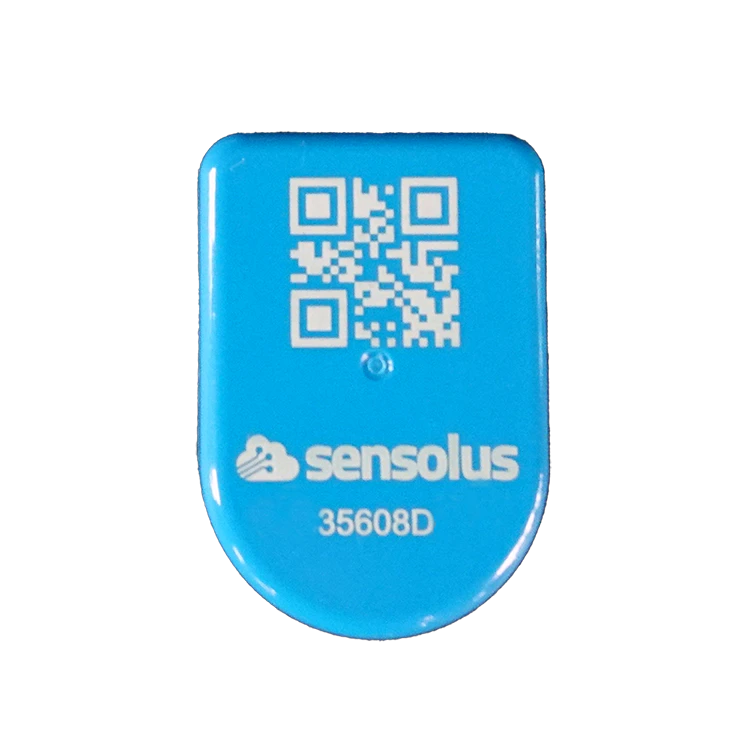

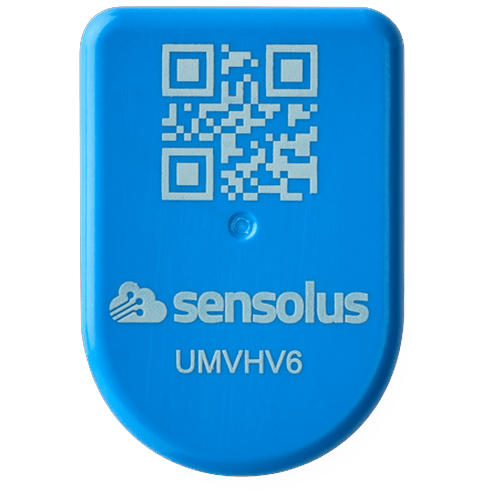

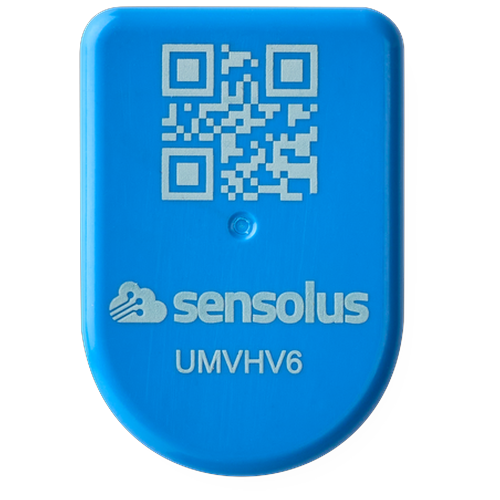

TAG 2008 Ultra-Compact BLE Location Tag Tracker www.sensolus.com | info@sensolus.com Very compact location tag tracker that offers a 3 year battery lifetime. Its rugged, physical properties make it very suitable for applications where space is limited and for vibration intensive use cases. It uses Bluetooth Low Energy (BLE) technology and enables asset localization when scanned by Sensolus devices with smart BLE gateway capabilities. BLE iBeacon advertising Up to 3 years battery life IP67 rated 32 × 22 × 5mm 5g Connectivity Technology Bluetooth Low Energy (BLE) iBeacon Transmission Range Up to 20 meters or more at +4dBm emission power. Actual detection range is strongly influenced by physical environment. Mechanics & Design Dimensions 32 × 22 × 5mm Weight 5 grams Color Blue Casing Material Encapsulated in polymer resin Water & Dust Resistance IP67 Operating Temperature -20°C to +60°C Power Battery Type Non-replaceable CR2032 battery Battery Life Up to 3 years. Activation Method The TAG 2008 is already activated out of the box.TAG 2008 Ultra-Compact BLE Location Tag Tracker www.sensolus.com | info@sensolus.com Certifications Europe CE USA FCC Canada IC Environmental RoHS compliant
Description:
Access level: public
Reference: SDOC-498608282-1391
Download: PDF
Activation and installation manual for TAG 2008 www.sensolus.com | info@sensolus.com June 24, 2025 Activation of the TAG 2008 The TAG 2008 comes pre-activated from the factory. No additional activation is required. Mounting the TAG 2008 Secure the TAG 2008 using double-sided tape or industrial-grade adhesive. See general mounting advice document for detailed mounting guidelines. Replacing batteries The batteries in the TAG 2008 are non-replaceable. When the battery is depleted, the entire unit must be replaced. Safety advice – device subjected to strong mechanical impact Risk of delayed battery failure and chemical hazard If a device has been hit, crushed, or struck by a heavy object (for example a forklift, container, pallet, or falling load), the internal components and battery may be damaged even if no external damage is visible. Such damage can result in delayed overheating, leakage, or failure. If a device has been subjected to a strong mechanical impact, the following mandatory safety actions must be taken: # Action Details 1 Do not touch the device Do not move, lift, open, shake, or inspect the device immediately after the impact. Internal damage may cause delayed reactions. 2 Keep a minimum safety distance Maintain a clear distance of at least 5 meters from the device. Keep all personnel away during this period. 3 Wait at least 10 minutes The device must remain untouched and undisturbed for a minimum of 10 minutes following the impact. This waiting time allows potential delayed thermal or chemical reactions to become evident. 4 Observe from a safe distance Watch for warning signs: smoke, vapor, or unusual odor; heat generation; fluid leakage; hissing, cracking, or popping noises. 5 After the waiting period If any abnormal condition is observed, isolate the area immediately and notify responsible safety or supervisory personnel. The device must be quarantined and handled according to battery safety and disposal procedures. The device must not be used. A device may appear undamaged and still be unsafe. Normal operation after impact does NOT mean the device is safe. Failure to follow this safety advice may result in serious injury, fire, or chemical exposure.
Description: 3D-file for TAG 2008 in STP format
Access level: end-user
Reference: SDOC-498608282-1215
Download: STP
