Description: TRACK 1000 1001 1040 1100 drill hole template. Use this to drill holes at the correct distances when installing a tracker on an asset.
Access level: public
Reference: SDOC-498608282-64
Download: PDF
115 mm Drilling hole patterns for TRACK 1000 1001 1040 1100 Do not scale this drawing! Print on A4 paper
Description:
Access level: public
Reference: SDOC-498608282-1359
Download: PDF

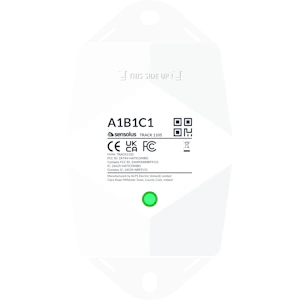

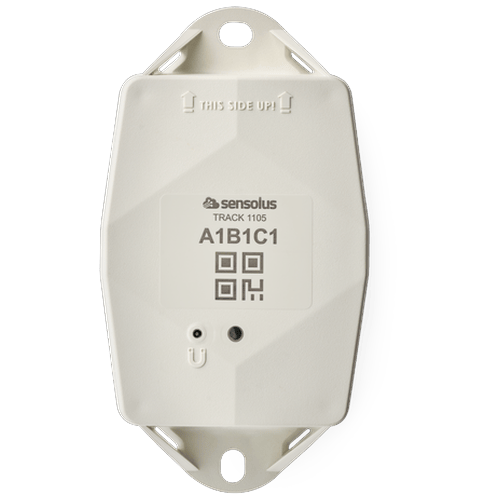

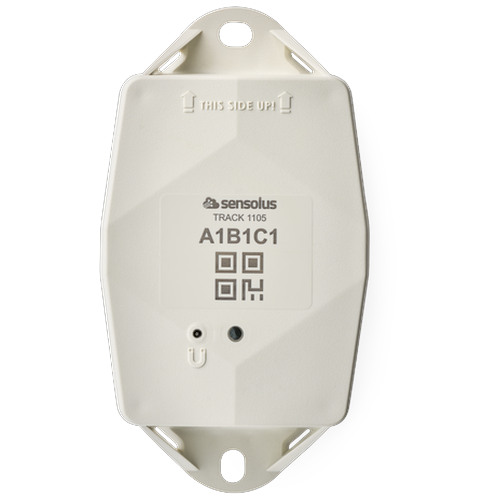

sensolus TRACK 1105 GNSS/Wi-Fi/BLE - NB-IoT/LTE-M www.sensolus.com | info@sensolus.com The rugged low-power tracker with long battery life with NB-IoT and LTE-M connectivity and guaranteed data recovery. The tracker provides general localization, zone and high precision. The tracker comes with an onboard temperature sensor and shock detection. Compatible with multiple external environmental sensors. The tracker firmware can be upgraded over the air. GNSS Wi-Fi scanning Bluetooth geobeacon for zone precision Quuppa tested for high precision NB-IoT LTE-M Europe and North America Data recovery IP69K & IP68 IK 09 Flame retardant 130×72×36 mm 212g (7.6 oz) Connectivity NB-IoT and LTE-M • Energy efficient transceiver • Internal omnidirectional antenna • Bi-directional communication • NB-IoT and LTE-M bands: Europe/North America • Data recovery • OTA firmware upgrade (NB-IoT or LTE-M) Connectivity plan • TRACK 1105 comes with the Extended connectivity plan Bluetooth Low Energy (BLE) Bluetooth Low Energy 5.0 Geolocalization GNSS Multi GNSS constellation chipset (GPS+GALILEO) BLE • Sensolus proximity beacon detection • Detectable by zone and high precision anchors Wi-Fi scanning • Wi-Fi based geolocalization • Wi-Fi 2.4 GHzsensolus TRACK 1105 GNSS/Wi-Fi/BLE - NB-IoT/LTE-M www.sensolus.com | info@sensolus.com Sensing Internal • Activity monitoring • Orientation monitoring • Virtual tamper detection • Temperature monitoring • range: -20°C till 60°C (-4°F to 140°F) • typical accuracy: +/- 0.25°C (+/- 0.45°F) • worst case accuracy: +/- 1°C (+/- 1.8°F) • Configurable shock detection Environmental BLE sensors • Temperature, humidity • Fill level, contact, magnet • Other BLE sensors can be added Activation and mounting • Activation and mounting • Activation manual • Holes 7x9mm (⁹/₃₂ * ²³/₆₄ in) for screws or rivets. 115 mm (4¹⁷/₃₂ in) distance between the centers of the mounting holes. • Instructions for mounting the device are available in the Sensolus documentation center. Mechanics & Design Antennas All antennas are internal Water & dust resistance IP68 & IP69K Size 130x72x36 mm (5⅛ x 2⁵³⁄₆₄ x 1²⁷⁄₆₄ in) Impact resistance IK09 Weight 212 gram (7.6 oz) Drop shock and vibration EN 60068 Color White Operating temperature -20°C to 60°C (-4°F to 140°F)* The specifics regarding operational temperature are contingent upon the application, installation circumstances, and environmental factors such as sunlight exposure. For further information, please reach out to Sensolus. Battery life can be affected when devices function for extended periods at the extremes of this range. Casing • Shell: PBT + PC Cover: PBT GF30% + TPE • Flame retardant • UV-stabilized Battery Standard 3 cell • User replaceable battery pack (Li-SoCl₂) 10800 mAh • 2.94 gram (0.1037oz) lithiumsensolus TRACK 1105 GNSS/Wi-Fi/BLE - NB-IoT/LTE-M www.sensolus.com | info@sensolus.com Certifications Regulatory • CE • FCC • IC Bluetooth 5.0 Declaration ID D068598 Environmental Drop shock in progress Electrical safety EN 62368-1 User Interaction Device activation Magnetic activation LED feedback Green & red LED feedback on the device Synchronize remote settings • Instant: Magnet activation • Periodic: No user interaction needed Management Services Diagnostics • Battery lifetime prediction • Detailed energy consumption • Geolocation diagnostics • Installation • Communication quality Management • OTA firmware updates over NB-IoT,LTE-M and BLE • Remote configuration • Tracker usage profiles • External environmental sensors Application services • Localization • Journeys • Activity • Utilization • Connectable with environmental sensors • Temparture detection • Tilt detection • Shock detectionsensolus TRACK 1105 GNSS/Wi-Fi/BLE - NB-IoT/LTE-M www.sensolus.com | info@sensolus.com Firmware configuration Communication service • Data recovery strategy • Communication conditions Location service • Motion based,context based, periodic or scheduled • Configurable update rate and journey detection • Priority sequence (GNSS, Wi-Fi scanning , Bluetooth geobeacon) • GNSS fix parameters • Quuppa certified for high precision • Indoor detection algo • Wi-Fi scan strategy • BLE scan strategy General configuration • Rule engine configuration • Diagnostic levels • Boot methods • Accurate time synchronization Orientation service Orientation detection parameters Environmental sensing • Polling and aggregation strategy • Alerts • Edge processing parameters Activity service Activity detection parameters Tamper service Virtual tamper algo configuration Shock detection Shock algo detection parameters Security • Device unique encryption keys • End to end payload encryption Chacha 20 • AES encrypted firmware • Firmware upgrade allows only signed firmware images
Description:
Access level: public
Reference: SDOC-498608282-1398
Download: PDF
Installation and activation manual TRACK 1105 www.sensolus.com | info@sensolus.com November 21, 2025 9:47 AM Mounting the tracker Guidelines how to mount the tracker can be found here. Tracker activation Activation of the trackers is preferably done with clear skies, and not inside (e.g. factory or warehouse). Trackers are not activated when delivered to your premises. Their subscription in the platform will start within six months of purchase. 1 Hold a magnet for about 5 seconds on top of the logo on the asset tracker. �2 You will first see a red LED. Do not remove the magnet yet. �3 When the green LED is blinking you can remove the magnet. Your tracker is ready for use. Activation troubleshooting Activating a tracker that communicates over the NB-IoT or LTE-M network can sometimes come with a delay. With a delay we mean that the online status doesn't appear within 5 minutes after holding the magnet to the tracker. This is mostly due to conditions on the network operator site. If the activation wasn't successful after 5 minutes the tracker will try again to activate again after waiting 24 hours. This long period of time is often an obstacle to start installing trackers to assets and makes the timing of the installation of the trackers cumbersome as it is important to only install trackers when they appeared as online on the platform. To overcome to 24 hours waiting time, you can do the following: If after 5 minutes of waiting and the status didn't change yet to “online” hold the magnet again for 5 seconds on top of the tracker to enforce a new attempt for activation. Keep trying every 5 minutes until the Online status appears. Installation advice Avoid blocking the tracker's view with metal or carbonfibre walls. They weaken or block the radiofrequency signals. Place the tracker as high as possible on the asset to ensure good network coverage. Make sure the mounting surface is flat and clean, for a strong and durable bond. Do not install the tracker on parts that receive frequent shocks or vibrations.Installation and activation manual TRACK 1105 www.sensolus.com | info@sensolus.com November 21, 2025 9:47 AM Install the tracker vertically, with the logo facing up. If your asset is handled in a rough environment, you can place the tracker in a protected location, but never with metal or carbonfibre above the tracker. Make sure the tracker has a clear view on the sky. Avoid placing the tracker in a place that can collect water. If you can't install vertically, do not mount the tracker upside down. It is advisable to place a thermal insulation material, such as wood or plastic, between the tracker and the metal asset if the latter is subjected to prolonged exposure to sunlight. Troubleshooting
  1. Put the magnet on the tracker for less than 5 seconds
  2. The possible LED feedback options are: Red LED: Tracker is not activated Green LED: Tracker is activated and working properly No LED: tracker is not functioning (probably dead battery -> contact support) Red LED is blinking: Tracker is busy Force new configuration download on the tracker
Installation and activation manual TRACK 1105 www.sensolus.com | info@sensolus.com November 21, 2025 9:47 AM 1 Hold a magnet for about 5 seconds on top of the logo on the asset tracker. You will see a green LED. �2 You will see a red and green LED. Now remove the magnet. �3 Green LED is blinking for minimum 30 seconds. Your tracker is checking for new configurations. �You see a red LED: No new configuration received. You see a green LED: New configuration setting received.Installation and activation manual TRACK 1105 www.sensolus.com | info@sensolus.com November 21, 2025 9:47 AM Regulatory Information Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This equipment is not suitable for use in locations where children are likely to be present. Industry Canada Statement This device complies with ISED's licence-exempt RSSs. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be chosen so that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. RF Exposure Requirements: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Le présent appareil est conforme aux CNR d' ISED applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
  3. le dispositif ne doit pas produire de brouillage préjudiciable, et
  4. ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radio électrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements du Canada établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
For installation instructions, see Installation instructions.
